Oblong Paint Pail Mould

Product Detail

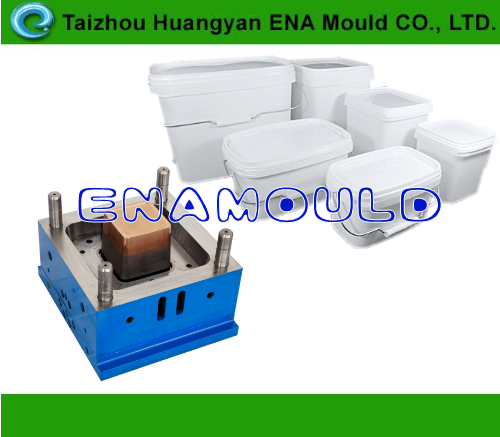

Detail of Rectangle Pail Mould

Mould Name : Oblong Pail Mould

Product description: Seal proof system design

mould cavity: 1 cavity

mould Size: 700x700x750mm

Suitable machine: 500T Injection machine

mould material: DIN 1.2344+Copper Beryllium

mould life: 2,000,000 shots

Runner system: 1 point ANOLE Hot Runner point gate

Ejection system: Inclined ejecting block

mould running: Full automatic

Injection cycle time : 10 seconds(high speed injection machine)

Delivery time : 65 days



Mould Process

Product Design: Customer send us the product drawing directly or we draw the product according to the sample,then we send customer the product drawing to confirm.

Mould Design: We'll start to design mould after the product drawing confirmed,then send customer the mould drawing to confirm.

Mould Making: The mould start to make after the mould drawing confirmed,the process include prepare steel,rough cut,finish machining,assembly etc

Mould T1: We'll test the mould after mould assembly,then we'll send customer samples and video of mould test to confirm

Final Process: The mould start to polish if the sample is OK,and make grain,nitration or

chroming if customer required

Mould T2: We'll test the mould again after polishing,then send customer the final sample and video of mould test to confirm

Mould Packing: The mould start to pack with wooden case after the final sample confirmed, then the mould will be sent to port and waiting for shipping



Mould Quality Control

1.Mould Material Q/C

a) mould steel checking (hardness,flaw detection)

b) mould spare parts checking (hardness,size)

2.Mould Making Process Q/C

a) design checking (part design,mould design,mould engineering drawing)

b) mould size checking (according to drawing)

c) mould testing (check mould working,sample)



Please offer the following information when you send us the mould inquiry

a)product drawing or the sample photo with sizes.

b) mould steel you want to use.

c) standard mould base or not.

d) runner system you want(cold or hot)
