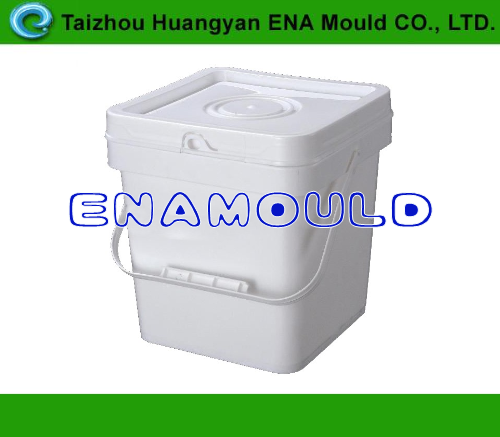

Square Barrel Mould 20L

Product Detail

Detail of Square Pail Mould with Lid

Mould Material: NAK80,S136,2316,2738,H13

Product Material: PP,PE

Cavity Number: 1 cavity

Injection System: Hot Runner Pin Gate

Ejection System: Air gate, Ejector plate

Lead Time: 50 - 60 days

Guaranteed Cycle: 1,000,000 - 3,000,000 shots

Design Software: NX, Pro-E, Auto-CAD,



Mould Process

Product Design: According to real sample or drawing.

Mould Design: Before mold design send DFM report to check every detail for the mold conception and start designing.

Mould Making: After mould design confirm, building mould, cut steel, rough CNC and precision machining etc.

Mould T1: After mold assembly do the T1, will send photos, samples and video for customer check,

Final Process: If samples all good, start polish and surface finish like chrome, nitrided etc.

Mould T2: Run the mold again after everything is complete, Send customer the final sample and video to confirm.

Mould Packing: Prepare the mold for shipment.







Advantage:

1. Short cycle time and high efficiency in production. It takes about 25 seconds to make one 20 liter bucket.

2.  Each cavity and core have independent cooling system, shortening production cycle time.
3. Rational mould design to extend mold life .
4. Mirror hand polishing to create added-value.
4. Precision Machining to ensure high production efficiency & fine parting line effect.
5. Skilled Language in communication and experienced in international standard.
